OTA Firmware Updates

The MDM platform supports over-the-air (OTA) firmware updates for managed devices, allowing fleet-wide updates without physical access.

Overview

graph LR
  A[Upload Firmware] --> B[Deploy to Fleet]
  B --> C[Download on Device]
  C --> D[Flash & Reboot]

Firmware Management

Uploading Firmware

1. Navigate to Firmware → Versions
2. Click Upload New Version
3. Fill in version metadata:
   • Version number (e.g., 1.52.1)
   • Release notes
   • Target device model
   • Minimum compatible version (optional)
4. Upload the .bin file
5. The platform computes and stores the SHA256 checksum

Version List

The firmware page shows all uploaded versions:

Column	Description
Version	Semantic version number
Model	Target device model
Upload Date	When firmware was added
Size	File size
Devices	Number of devices running this version
Status	Active / Deprecated / Latest

Deploying Updates

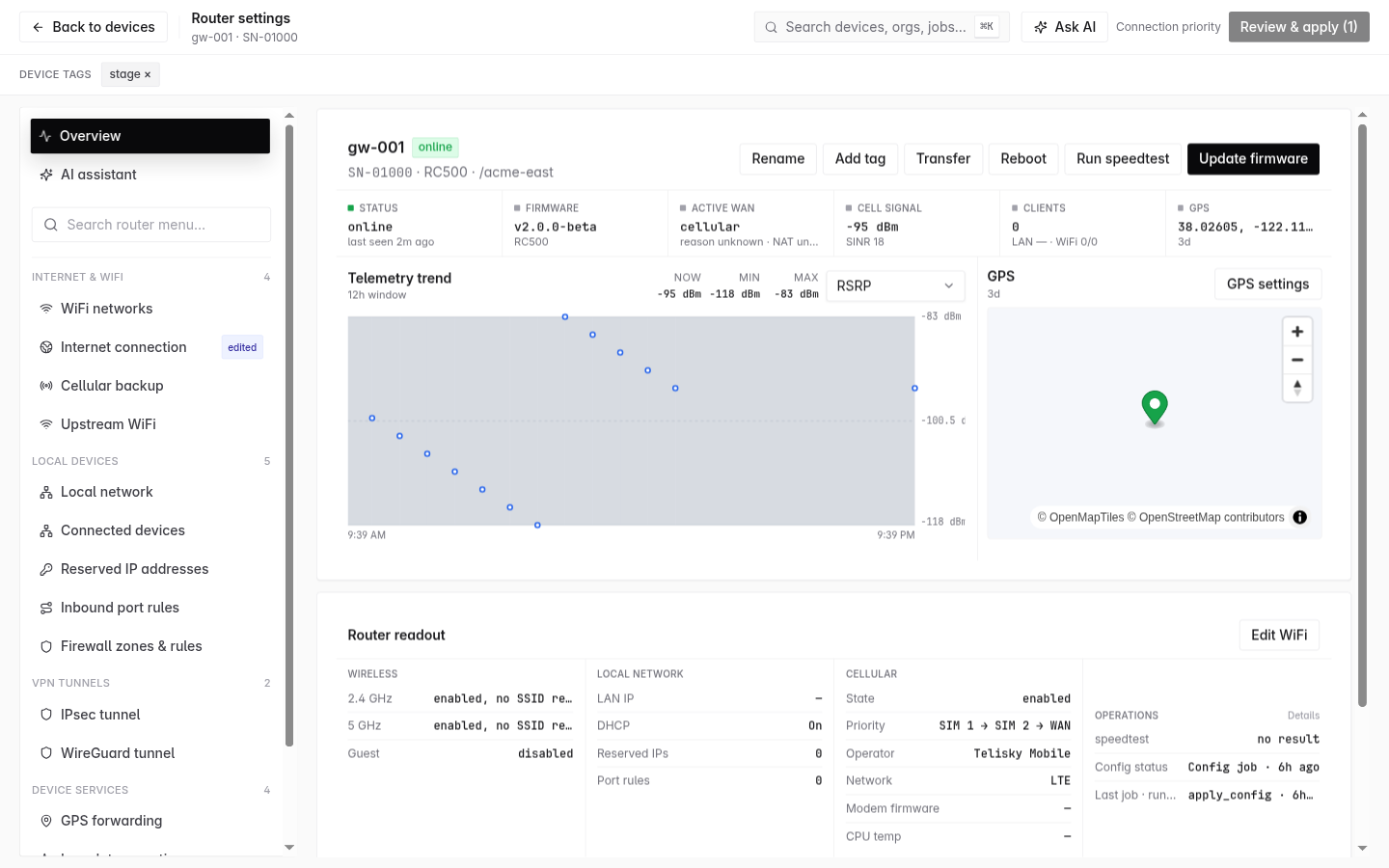

Single Device Update

1. Go to device detail → Commands tab
2. Click Firmware Update
3. Select the target firmware version
4. Choose options:
   • Preserve configuration (default: yes)
   • Schedule (immediate or delayed)
5. Click Deploy

Fleet Deployment

1. Navigate to Firmware → Deploy
2. Select the firmware version
3. Choose targets:
   • All devices on a specific model
   • Devices with tag (e.g., region:us-west)
   • Selected devices from a list
4. Configure rollout strategy:
   • Immediate — All devices at once
   • Staged — Percentage-based rollout
5. Click Start Deployment

Staged Rollout

For large fleets, use staged rollout to reduce risk:

Stage	Percentage	Wait Time
Canary	5%	1 hour
Early	25%	4 hours
Majority	50%	12 hours
Complete	100%	—

Between stages, monitor for:

• Increased offline rates
• Error reports
• Telemetry anomalies

If issues are detected, pause or abort the rollout.

OTA Process (Device Side)

When a device receives a firmware update command:

1. Receive — MQTT message on commands/firmware with download URL
2. Download — Device downloads firmware to /tmp
3. Verify — SHA256 checksum validation against expected hash
4. Acknowledge — Device reports “update starting” to platform
5. Flash — sysupgrade writes firmware to storage
6. Reboot — Device restarts into new firmware
7. Report — After boot, device reports new firmware version

Timing

Phase	Duration
Download	30s – 5min (depends on connection)
Verify	< 5s
Flash	60 – 90s
Reboot	30 – 60s
Total	2 – 7 minutes

Monitoring Deployment

The deployment dashboard shows real-time progress:

Status	Meaning
Queued	Update command sent, waiting for device
Downloading	Device is downloading firmware
Installing	Device is flashing firmware
Rebooting	Device is restarting
Success	Device reported new version
Failed	Download, verify, or flash failed
Timeout	Device didn’t complete within 15 minutes

Failure Handling

If an update fails:

• Device remains on current firmware (safe — flash only proceeds after verification)
• Platform logs the failure reason
• Admin can retry the update or investigate
• Automatic retry available (configurable: 1-3 retries with backoff)

Modem Firmware Updates

Cellular modem firmware is updated separately from router firmware:

1. Modem firmware is uploaded to the platform
2. Update command sent to device
3. Device uses QFirehose protocol to flash the modem
4. Modem restarts and re-registers on network
5. Device reports new modem firmware version

Caution

Modem firmware updates take 5-10 minutes and temporarily disconnect cellular connectivity. Schedule during low-usage windows.

Best Practices

• Test on a single device first before fleet deployment
• Use staged rollout for production fleets
• Monitor after deployment for unexpected behavior
• Keep previous versions available for quick rollback
• Document release notes for each firmware version
• Set minimum version requirements to prevent incompatible downgrades
